Based on a standard 6ft maritime container built by the CLUE experiment in the 90s.

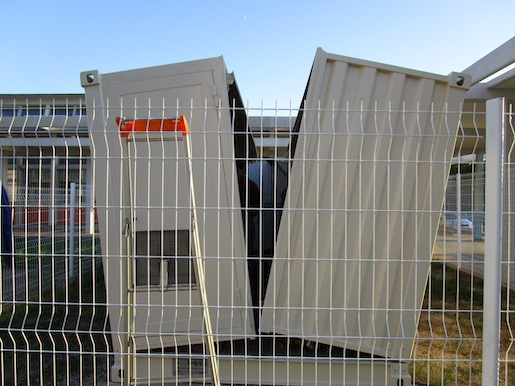

Motorized side walls permit to expose the Raman Lidar structure for data-taking. Equipped with on-line weather alarms it can close down in less than 40 sec, thus protecting the Lidar from most severe weather degradations. Total weight close to 4tn.

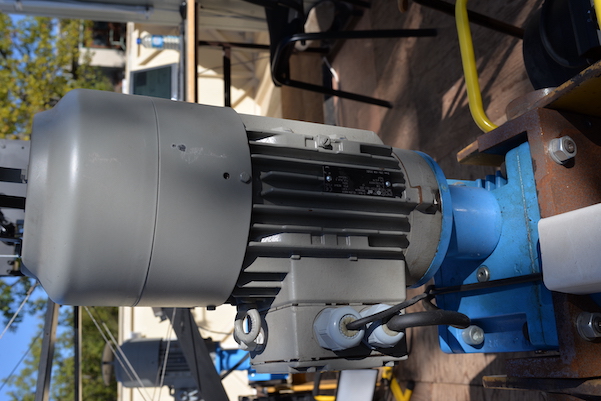

Side walls Operation Motors
We use Rotor brandt RN Series Switch Pump motors. High speed (2880/min) and High Power (3kW). With a power factor of 0.87 and nominal torque of 10Nm. Ask for more detailed informations.

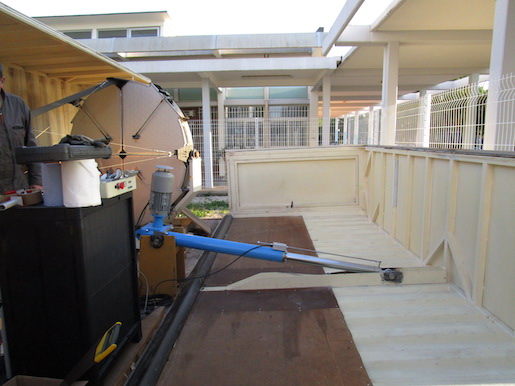

Extention Tubes
Equipped with end-switches, these extension arms assures the unpark and park functions. Heavily buit they can stand the weight of a couple of persons.
