PLCs

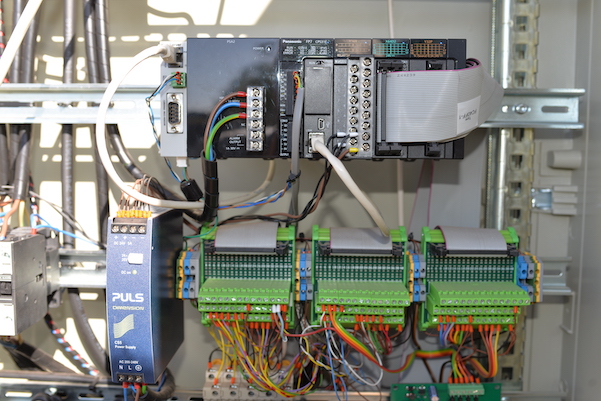

Our Control system is built around an FP7 PLC by Panasonic.Thanks to the Ethernet connectivity, the FP7 is a true data collector and, thanks to
full web integration, "Industry 4.0 ready". Up to 64 different units can be controlled with one CPU,
the modular structure takes up little space and makes the FP7 a universal controller for a variety of applications.
Commands :
The Container park/unpark
Telescope Pointing
Alignement
Telescope Protection Petals
Laser
Divers securitu issues
LICEL Rack

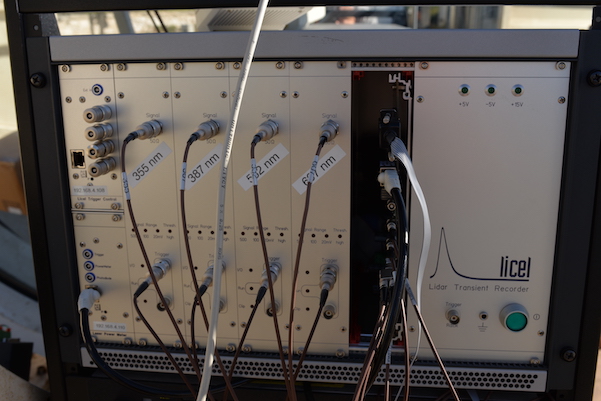

We use an Lidar Industry standard LICEL module to read-out the photomultiplier signal. Four modules in total plus an addition module that controls the laser timing.
The custom built
photomultiplier gating module is also housed in the same rack.
On-Board CPU

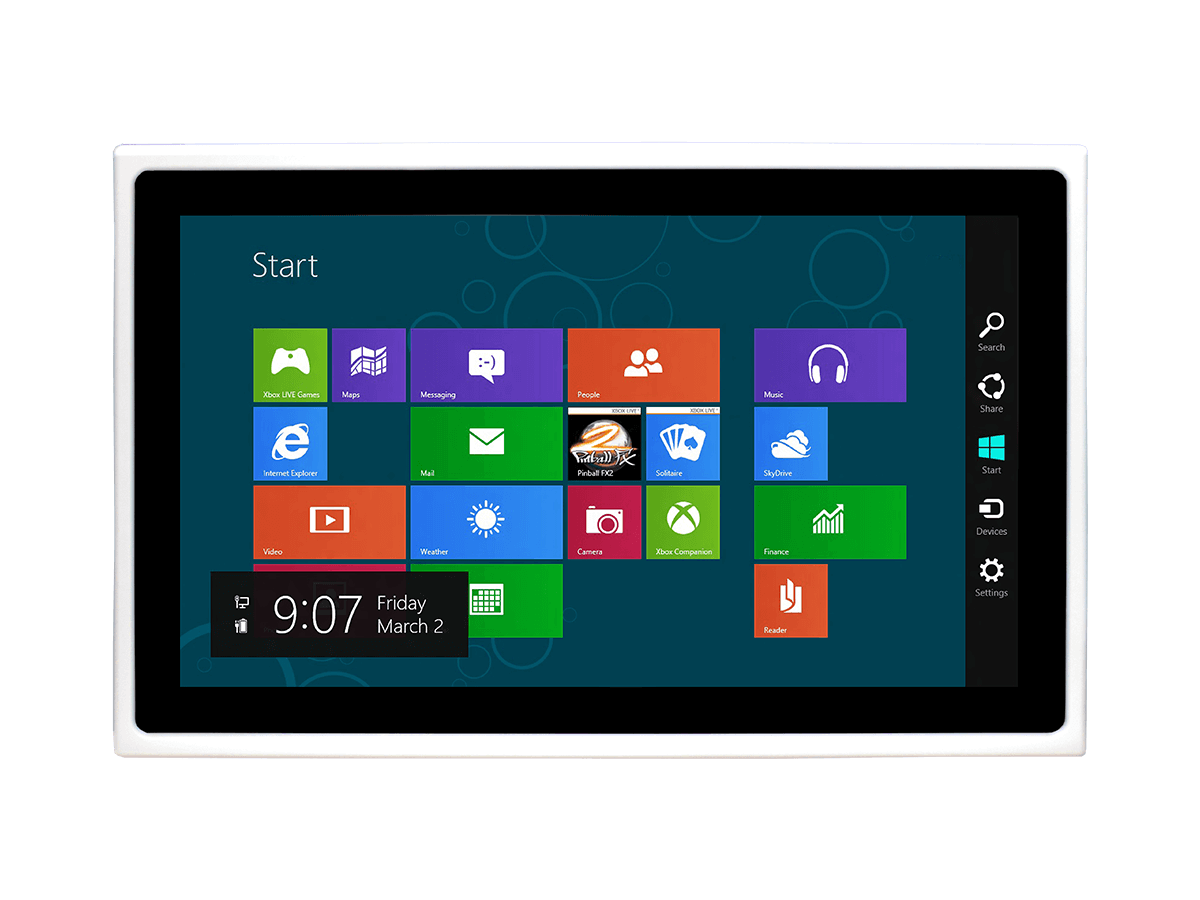

Stand-alone mode (debugging) of operation is centralized around an ASLAN-W715C CPU.
It is a Fanless 15.6" Wide-Screen Industrial Panel PC with Intel® J1900 Quad-Core™ Processor
Features
15.6" 1366 x 768 WXGA LCD Display w/ LED Backlight
Flat panel with projected capacitive touchscreen
Front panel compliant with IP65
Anti-scratch surface: 7H hardness
Vertical I/O Design
Easy Maintenance Design for CFast/HDD/SSD
Serial Ports (RS-232/485), RS-485 w/ Auto-flow Control
Mini PCIe expansion slot support
Cable-less Design
2 x SMA Antenna Holes for optional WiFi Function
9~36V Wide-Range DC Input
