Designed and fabricated by Raymetrics.

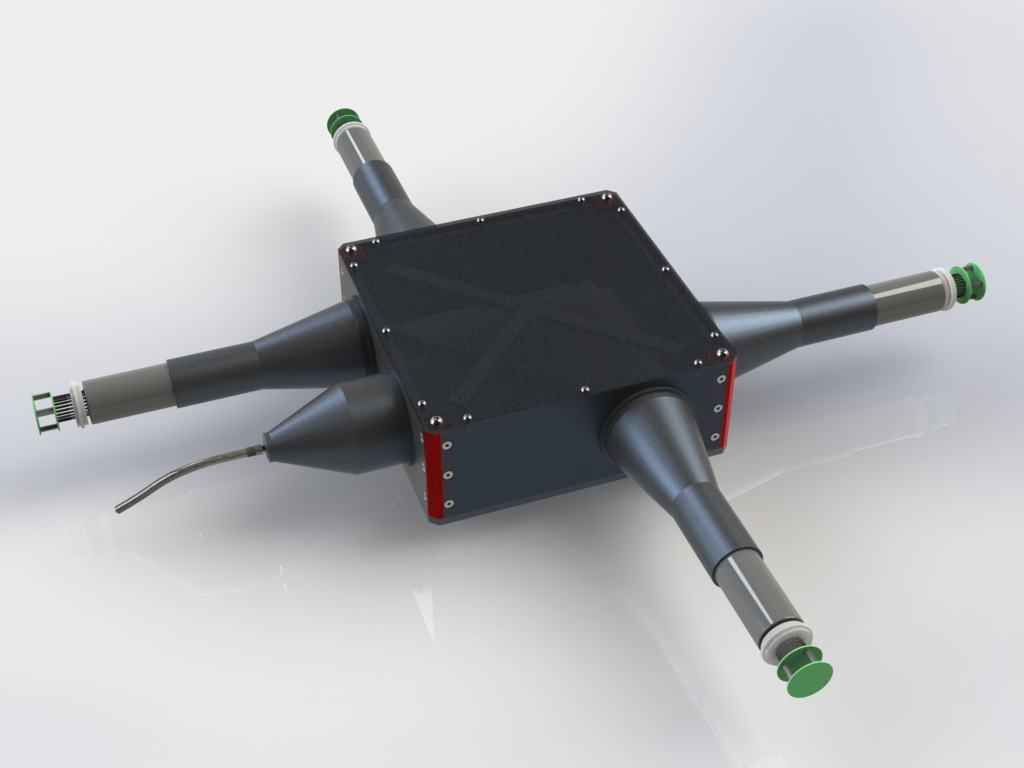

High precision Polychromator. Its been designed to accomodate 2" optics. Uses very high quality lenses and filters to separe the 355/387/532 and 807 nm lines. Separate dedicates input for the Optical fiber receiver cable.All aluminum design for better insulation and weight purposes. Completely weathertite.
Optical Design
Detailed simulations has been contacted by Raymetrics to achieve optimal performance for this custom made Polychromator.

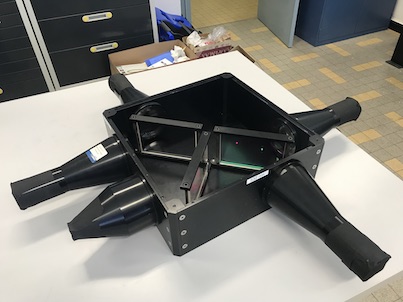

Inside View
A series of square shaped custom made RazorEdge Raman Filters assure a better than 1/10000 rejection and close to 99% of detection on the specific wavelenghs designe for.
